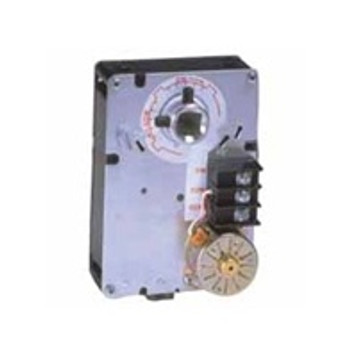

Honeywell M9184F1034 NSR Actuator, 24V

These actuators are also known as Modutrol Motors. Integral auxiliary switches are usually available in the build. All models include a wiring box providing NEMA 3 weather protection.

Honeywell M9184F1034 Features:

• Used with Electric Applications
• Foot-mounted
• Quick-connect Terminals for Electrical Connections
• 24V
• Driving - 15 Va Power Consumption
• -40 Deg F to 150 Deg F Ambient Temp
• 2 Internal Auxiliary Switch
• Adjustable, 90 to 160 Deg, Symmetrical Stroke
• Proportional, 135 ohm Control Signal
• NSR Stands for Non-Spring Return Fail Safe Mode
• 150 lb-in Torque
• Dual-ended Shaft
• 30-60 Sec Nominal timing

Technical Literature:
