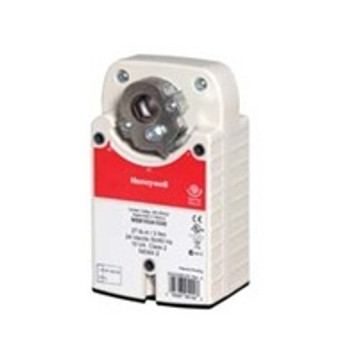

Honeywell MS8120A1007 Direct Coupled Actuator 24V

Spring return direct-coupled, line voltage actuator that accepts two-position (SPST) control for: air dampers, air handlers, ventilation flaps, louvers, and ball valves.

Features:

• Used with HVAC applications
• Spring Return fail safe mode
• NEMA 2
• Zero Internal Auxiliary Switch
• -40 to 140 Deg F Ambient temperature range
• 175 lb-in torque rating
• Manual crank
• Self-centering clamping shaft adapter
• Power consumption: Driving - 40 VA, Holding - 8 VA
• Enclosed screw terminal strip (22 to 14 AWG) for electrical connection
• Integral 1/2" NPSM conduit connection
• Aluminum housing material, Plenum rated plastic access cover
• 3/8" to 11/16" square shaft dimension
• Includes mounting bracket, self-centering shaft adpater, 3mm crank
• 9.72" high x 3.94" wide x 2.95" deep
