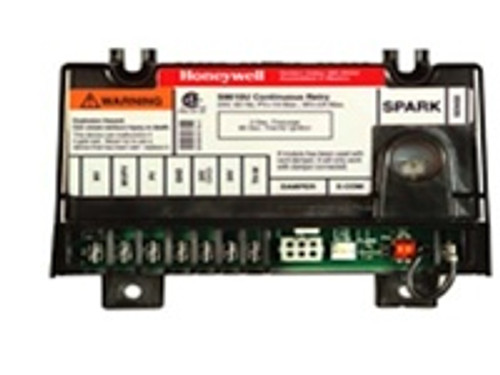

Honeywell S8610U3009 Intermittent Pilot Ignition Module

Field service replacement for most Honeywell, Robertshaw, Johnson, and UTEC (HSC) Intermittent Pilot Ignition Modules. Provides electronic control of most intermittent pilot ignition systems used on gas-fired furnaces, boilers, and other heating appliances.

• Description
  • One or Two Rod Intermittent Pilot Control with continuous retry trial time with configurable lockout timing of 15 or 90 seconds and configurable prepurge of 30 seconds or no prepurge
• Ignition System Type
  • Intermittent Pilot
• Ignition Sequence
  • Continous retry, after trial for ignition, pilot gas shuts off for 5 minutes, then another trial for pilot ignition takes place
• Typical Gas Control

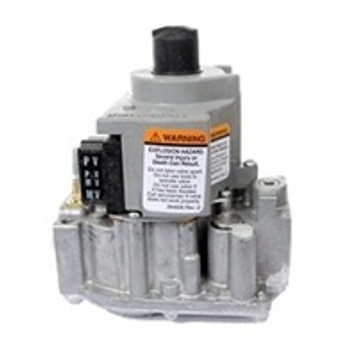

  • VR8204, VR8304
• Ignition Trial Time (sec)
  • continuous retry
• Dimensions (in.)
  • 3 15/16 in. high x 5 7/16 in. wide x 2 5/8 in. deep
• Electrical Ratings
  • 24 Vac
