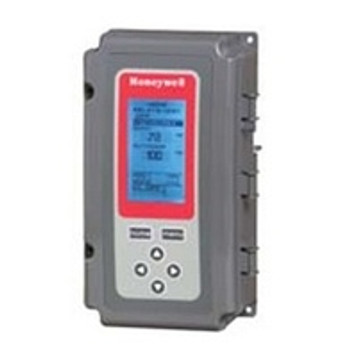

Honeywell T775R2043 Electronic Temperature Controller

These temperature controllers are capable for remote sensing of temperature and providing switched and/or proportional outputs to various types of loads.

Features:

• Use the time clock scheduler or digital input to control the setback and disable output options to help save energy
• Protect equipment from freezing or overheating on models with the modulating high or low limit control option
• Get pinpoint control on modulating outputs by setting the integral and derivative times (PI or PID)
• 24 Vac or 120/240 Vac
• -40 F to 248 F setpoint temperature range
• 2 sensor inputs
• 1097 ohms PTC at 77 F sensor element
• 1 F to 150 F differential temperature
• 1 F to 150 F throttling range
• 1/4" diameter x 2" long bulb size
• Reset Option - NEMA 1 type
• Relay with Reset Output
• Ambient: - 40 F to 140 F @ 60 Hz; -40 F to 125 F @ 50 Hz Operating temperature range
• 8-5/32" high x 4-13/32" wide x 2-15/16" deep
