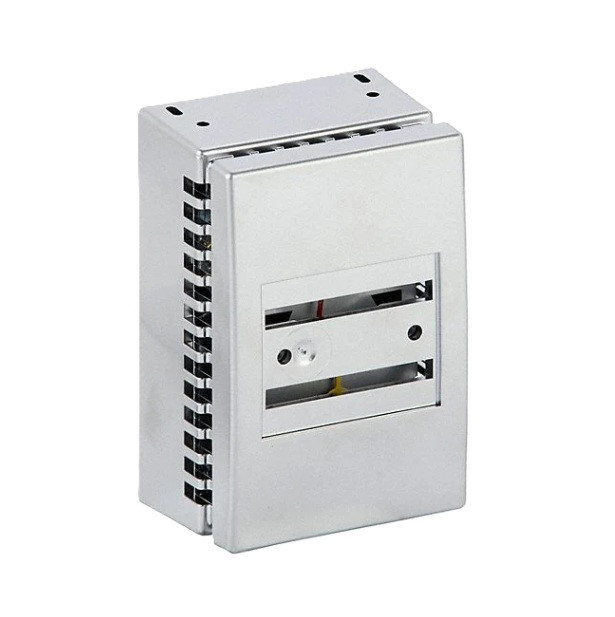

Honeywell TP970A2145 Pneumatic Thermostat Direct Acting

Pneumatic thermostat used to provide proportional control of pneumatic valves and damper actuators in heating and air conditioning systems. Replacement kits are available for Johnson, Powers, Robertshaw, Barber-Colman, and older Honeywell two-pipe pneumatic thermostats.

Features:

• Pilot operated for high capacity
• Shock-resistant, suspension-mounted thermostats provide dependable performance and responsiveness
• Direct Acting (DA) and Reverse Acting (RA) models are available
• Wide throttling range models for Zero Energy Band operation are available
• Backplate has molded air connections - no separate fittings needed
• Universal locking cover with satin chrome finish and horizontal, vertical, or blank window options
• Used for heating applications
• 25 PSI max safe operating pressure
• 100 F max temperature range
• Includes Thermostat, small wall plate and satin chrome cover
• Wall Mounted
• Bimetal Sensor Element
• 2 Pipe
• Single setpoint
• Converstat Kit
• 2 F to 10 F Throttling Range
• 150 F max shipping and storage temperature range
• 3-1/4" high x 2" wide x 1-5/8" deep
