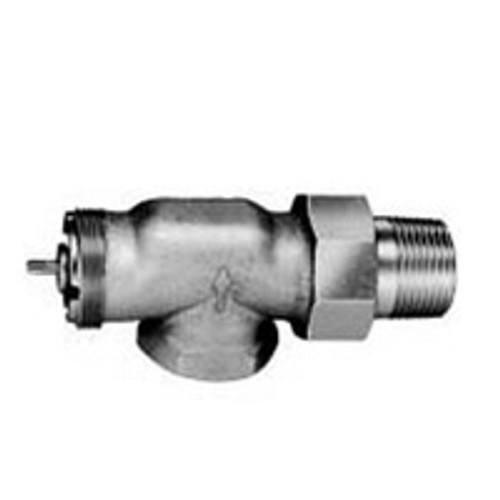

Honeywell V110F1002 Braukmann 1/2" Radiator Valve 4.6CV Angle

High Capacity Thermostatic Radiator Valves with T104 Thermostatic Actuators provide control of temperature by modulating the flow of hot water or steam through free-standing radiators, convectors, and other heating units with high capacity requirements.

Honeywell V110F1002 Features:

• Designed with the higher capacity normally required by North American heating systems
• Valve seat disc, which is made of resilient material (EPDM), ensures tight shutoff on steam or hot water systems
• Valves normally open without control mounted
• Valves may be used with T104 Thermostatic Actuators
• Precise and automatic control of room temperature in two-pipe systems by modulating the flow of hot water or steam through high capacity heating units
• 248 F Max Temperature Range
• Threaded Connection type
• Horizontal Angle Body Pattern
• Hot Water - 150 Psi max // Steam - 15 Psi max
• 1/2" Pipe Size
• DN15 Pipe Size
• High Capacity
• 4.6 Cv Capacity
• 127,000 Btu/hr Capacity
• Bronze Material Body

• Designed with the higher capacity normally required by North American heating systems.
• Valves normally open without control mounted
• Valves may be used with T104 Thermostatic Actuators

• Pipe size - 1/2 in., DN15
• Capacity - 4.6 Cv, 127,000 Btu/hr
• Connection Type - Threaded

Technical Information:

https://customer.resideo.com/resources/Techlit/Tec...
