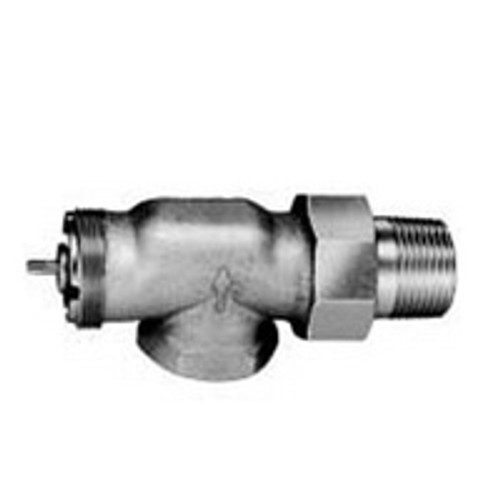

Honeywell V110F1010 Braukmann 3/4" Radiator Valve 5.8CV Angle

High Capacity Thermostatic Radiator Valves with T104 Thermostatic Actuators provide control of temperature by modulating the flow of hot water or steam through free-standing radiators, convectors, and other heating units with high capacity requirements.

Honeywell V110F1010 Features:

• Designed with the higher capacity normally required by North American heating systems
• Valve seat disc, which is made of resilient material (EPDM), ensures tight shutoff on steam or hot water systems
• Valves normally open without control mounted
• Valves may be used with T104 Thermostatic Actuators
• Precise and automatic control of room temperature in two-pipe systems by modulating the flow of hot water or steam through high capacity heating units
• 248 F Max Temperature Range
• Threaded Connection type
• Horizontal Angle Body Pattern
• Hot Water - 150 Psi max // Steam - 15 Psi max/li>
• 3/4" Pipe Size
• DN20 Pipe Size
• High Capacity
• 5.8 Cv Capacity
• 162,000 Btu/hr Capacity
• Bronze Material Body
