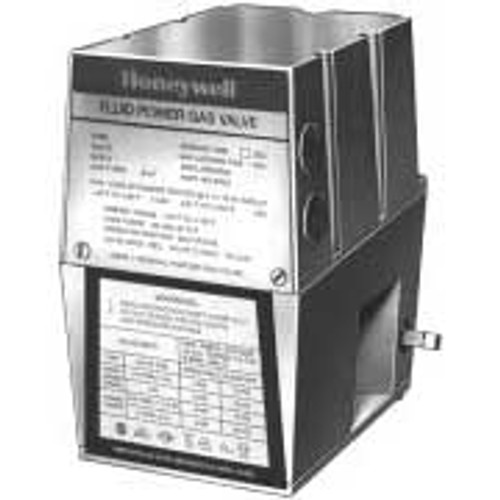

Honeywell V4055E1016 ON-OFF Actuator with Proof of Closure

This Honeywell V4055E1016 is used in combination with V5055 or V5097 Gas Valves. They are used to control gas supply to commercial and industrial burners. Able to mount in any position directly to valve bonnet with three setscrews.

• One-second maximum closing time
• Continuously displays the valve position -- with red indicator when open and yellow indicator when closed
• Includes Damper Shaft
• 15 or 25 psi max safety operating pressure
• -40 F to 150 F temperature range
• 120 Vac Electrical ratings
• 60 Hz
• Opening 13 Seconds // Closing < 1 second
• No internal auxiliary switch

Please see technical tab for literature on part # V4055E1016
