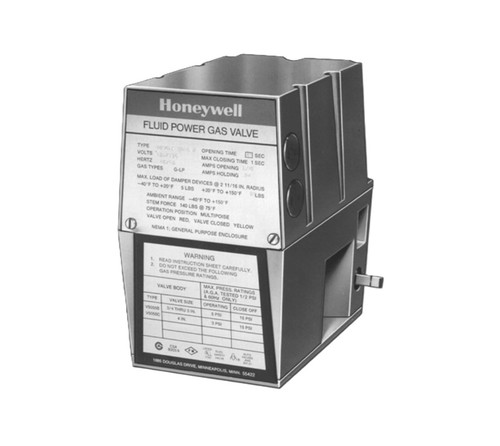

Honeywell V4062D1002 HI-LO-OFF Actuator with Proof Of Closure

The Honeywell V4062D1002 is used in combination with V5055 or V5097 Gas valves. They are used to control gas supply to commercial and industrial burners. Able to mount in any position to valve bonnet with three setscrews. The valve opens to low fire position when power is applied; valve opens all the way on demand.

Features:

• One-second maximum closing time
• Continuously displays the valve position -- with red indicator when open and yellow indicator when closed
• Includes Damper Shaft
• 5 psi max safety operating pressure
• -40 F to 150 F temperature range
• 120 Vac Electrical ratings
• 60 Hz
• Opening 26 Seconds // Closing < 1 second
• No internal auxiliary switch

Please see technical tab for literature on part # V4062D1002
