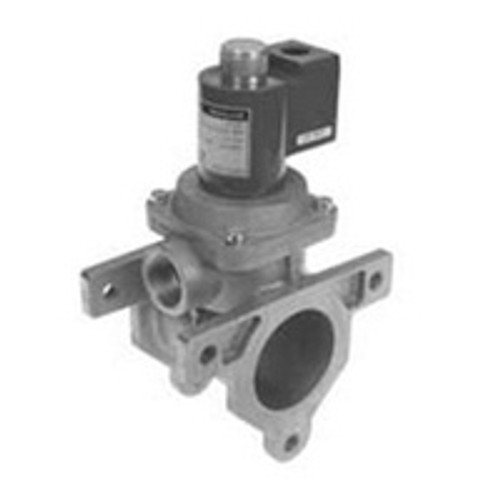

Honeywell V4297S1003 Solenoid Gas Valve, 1" NPT, Small Body, Normally Open

The Honeywell V4297S1003 is a normally open solenoid gas valve that is suitable for use on furnaces, ovens, atmospheric burners, commercial water heaters, roof-top make-up air units, power burners, and commercial / industrial boilers.

Honeywell V4297S1003 Features:

• Low operating noise
• Low rush-on current
• Die-cast aluminum material
• Straight through, non-offset body pattern
• Directly bolted to Integrated Valve Train components
• Screw terminal electrical connections
• 110 Vac; 120Vac voltage
• 50/60 Hz
• -40 F to 145 F operating temperature range
• 5 psi pressure ratings
• 1" vent Pipe size
• 714 cfh Capacity
• Less than 1 second valve opening and closing time
• 9-1/2 high x 3-1/8" wide x 5" deep
