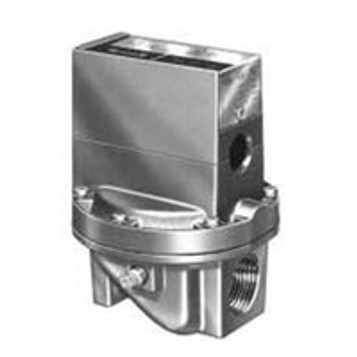

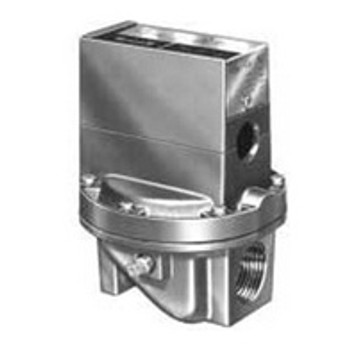

Honeywell V48A2151 Diaphragm Gas Valve 3/4" NPT

The Honeywell solenoid-operated diaphragm valve provides slow opening and fast closing suitable for controlling natural, LP or manufactured gases. They are normally used on atmospheric boilers, commercial water heaters, and rooftop heaters.

Features

• Two second maximum closing time
• Valve closes on power failure; recommended for final shutoff service
• Set opening time with various sized bleed orifices or adjustable bleed valve
• Cast aluminum in straight-through valve pattern
• Includes ground terminal
• 120 Vac // 60 Hz
• 1/2 psi pressure rating
• 6" leadwires electrical connection
• 32 F to 125 F operating temperature range
• 5 sec max valve opening time // 2 sec max valve closing time
• 3/4" pipe size
• Upright (horizontal) mounting
• 5-7/16" high x 3-13/16" wide x 4-5/8" deep

Please see technical tab for literature on part # V48A2151
