Honeywell V88A1659 Diaphragm Gas Valve, 3/4"

No reviews Write a Review
$225.69
SKU:
V88A1659
UPC:
085267110600
Availability:
Usually Ships in 1 to 2 Weeks
Hurry! Only left

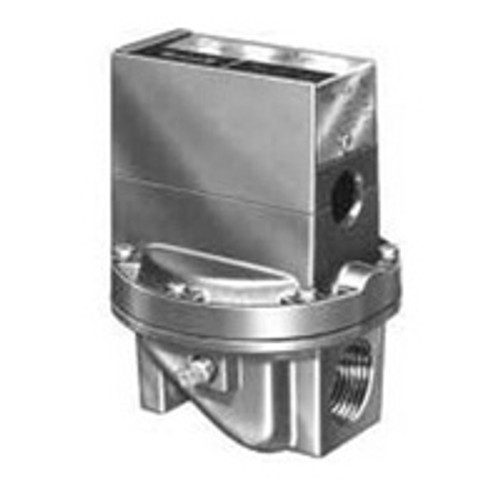

Honeywell V88A1659 Diaphragm Gas Valve, 3/4"

Solenoid-operated diaphragm valves provide slow opening and fast closing suitable for controlling natural, LP, or manufactured gases. They are normally used on atmospheric boilers, commercial water heaters, and rooftop heaters.

Features

  • Close firmly with diaphragm that is both weight and spring loaded
  • Two second maximum closing time
  • Valve closes on power failure; recommended for final shutoff service
  • Set opening time with various sized bleed orifices or adjustable bleed valve
  • Made with cast aluminum in straight-through valve pattern
  • 6" Leadwires electrical connections
  • 9 W ; 15 Va max power consumption
  • Normally Closed
  • 24 Vac voltage
  • 32 to 125 F operating temperature range
  • 1/2 psi pressure ratings
  • 3/4" Pipe Size
  • 2 sec max valve closing time
  • 5 sec max valve opening time
  • 5-7/16" high x 3-13/16" wide x 4-5/8" deep

Please see technical tab for literature on part # V88A1659


https://customer.honeywell.com/resources/Techlit/TechLitDocuments/65-0000s/65-0053.pdf
https://customer.honeywell.com/resources/Techlit/TechLitDocuments/60-0000s/60-2080.pdf
