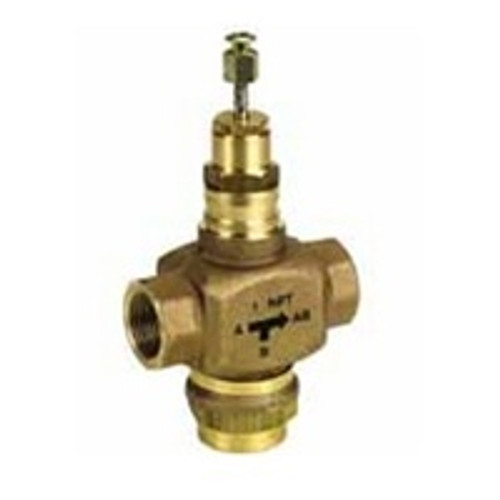

Honeywell V5013N1071 Globe Valve, 1-1/4", 3-Way

The V5013N is a three-way threaded globe valve that controls hot water, cold water, and glycol solutions (up to 50 percent concentration) in heating or cooling HVAC applications. The valves are used for mixing service to direct flow from one or two inlets to a common outlet.

Features:

• Stainless steel stem and brass plug

• Not suitable for combustible gases

• Constant total flow throughout full stem travel

• Red brass body, integral brass (upper) seat, replacement brass (lower) seat, stainless steel stem

• Mixing valve action
• Female NPT connection type
• 1-1/4" pipe size
• 18.7 Cv capacity
• 3/4" stem travel
• 1-3/8" bonnet size

• 36 F to 248 F water ambient temperature range
• 217 psi at 248 F max safe operating pressure

• Linear (B-AB); Equal Percentage (A-AB) flow characteristic
• Actuation must be purchased separately
• 7-5/16" high x 4-3/16" x 1-9/16" deep

Technical Information:

https://customer.honeywell.com/resources/Techlit/T...
