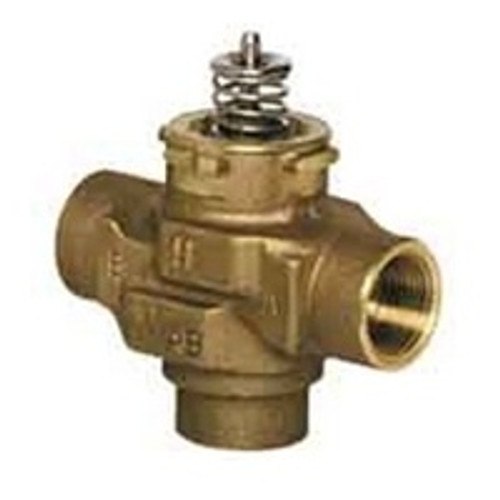

Honeywell VCMK6100 VC Valve Assembly, 3-Way, 3/4" Female NPT

Three-way Cartridge Cage Valves are intended for hydronic applications in a normal indoor environment to control flow of hot/chilled water glycol solution up to 60% concentration. These valves are designed for zone control of heating/cooling systems.

Honeywell VCMK6100 Features:

• Quick open and linear flow characteristics are available
• Mixing or diverting application
• High close-off rating independent of Cv
• A-AB-B body pattern
• 300 psi max safe operating pressure
• Used with VC Actuators, 2-Position, On-Off Type
• When used with VC series Acutator - On/Off Models with 6 seconds
• 32 F to 150 F ambient temperature range
• Female NPT Connection type
• Three-way A-AB-B body pattern
• 3/4" Pipe Size
• 34 F to 203 F fluid temperature
• 6.6 Cv Capacity
• Stem up to close A Port valve action
• Cartridge Cage Valve type
• Bronze body material
• EPDM O-ring seals on Noryl position seat material
• Stainless steel stem material
• Ryton, Noryl engineering plastic cartridge material
• Linear flow characteristic
• 0.4" Stem travel
