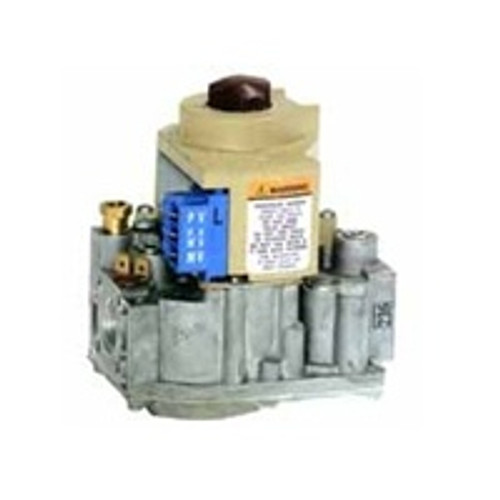

Honeywell VR8204A2076 Intermittent Pilot Gas Valve, 1/2 x 1/2"

This Honeywell Combination gas control for use in 24 Vac gas-fired, intermittent pilot appliances with capacities from 30 to 415 cfh.

Honeywell VR8204A2076 Features:

• Controls include safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment
• For use with S86F,H; S860D; S8600F,H; S8610 and S90A,B Control Modules
• Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends
• Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted
• Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves
• All adjustments, wiring connections and pilot outlet are accessible from top of control
• Compatible with ECO connector
• ON-OFF lighting sequence.
• Single Stage application
• 1/8" NPT with plug pressure tapping
• 1/4" quick-connect male terminal
• 1/2" x 1/2" Inlet/Outlet size
• 24 Vac voltage
• Straight-through body pattern
• Standard opening characteristics
• 1/2 psi pressure rating
• 0 F to 175 F operating temperature range
• Compression fitting for 1/4" OD tubing pilot gas outlet
• Used with Natural fuel
• Includes Natural to LP conversion kit; (1) 1/2" x 3/8" reducer bushing; (1) 3/4" straight flange
• 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
• 4-5/8" high x 4-1/8" wide x 2-11/16" deep
