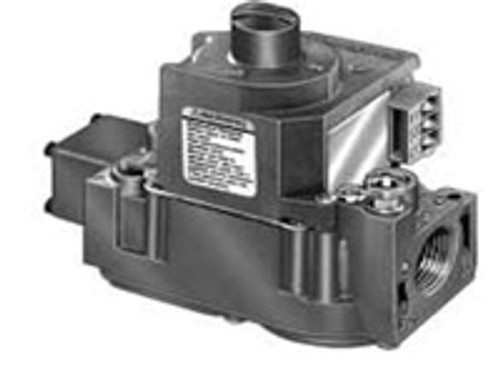

Honeywell VR8304M3509 Intermittent Pilot Gas Valve, 1/2 x 3/4"

This Honeywell Combination gas control is for use in 24 Vac gas-fired, intermittent pilot appliances with capacities from 30 to 415 cfh.

Honeywell VR8304M3509 Features:

• Controls include safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment.
• For use with S86F,H; S860D; S8600F,H; S8610 and S90A,B Control Modules.
• Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends.
• Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted.
• Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves.
• All adjustments, wiring connections and pilot outlet are accessible from top of control.
• Compatible with ECO connector.
• ON-OFF lighting sequence.
• Single Stage application
• Straight-through body pattern
• Standard Opening characteristics
• 1/2 psi pressure rating
• 1/2" x 3/4" Inlet/Outlet size
• Compression fitting for 1/4" OD tubing pilot gas outlet
• 1/4" Quick-Connect male terminal electrical connection
• 24 Vac voltage
• 1/8" NPT with plug pressure tapping
• Use Natural gas
• 3.5" w.c. pressure regulator setpoint
• -40 F to 175 F operating temperature range
• Includes (1) 3/4" x 1/2" reducer bushing; Natural to LP Gas conversion kit
• 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
• 5-3/8" high x 4-1/16" wide x 2-11/16" deep
