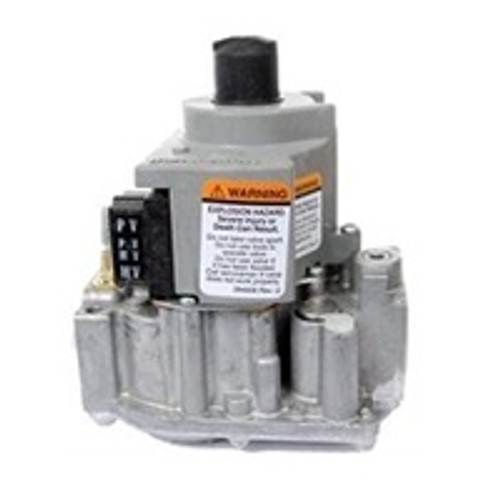

Honeywell VR8345M4302 Intermittent / Direct Ignition Gas Valve

Universal electronic ignition combination gas control for use with direct spark ignition, hot surface ignition or intermittent pilot ignition in 24 Vac, gas-fired appliances, with capacities from 20 to 200 cfh (VR8245M) or 30 to 415 cfh (VR8345M).

Honeywell VR8345M4302 Features:

• Control includes manual valve, two automatic operators, pressure regulator, pilot adjustment, pilot plug and ignition adapter.
• Replaces many IP, HSI, or DSI gas control.
• For use with natural or manufactured gas or LP gas.
• All adjustments and wiring connections accessible from top of control.
• Four-inch swing radius allows easy rotation into position inside the tightest furnace vestibules.
• Clearly marked, keyed terminal block allows quick attachment of wires and IP/DSI/HSI jumper.
• Internal inlet screen blocks contaminants in gas line from entering valve.
• Single Stage application
• Straight-through body pattern
• Standard Opening characteristics
• 1/2 psi pressure rating
• 3/4" x 3/4" Inlet/Outlet size
• Compression fitting for 1/4" OD tubing pilot gas outlet
• 1/4" Quick-Connect male terminal electrical connection
• 24 Vac voltage
• 1/8" NPT with plug pressure tapping
• Use Natural gas
• 3.5" w.c. pressure regulator setpoint
• -40 F to 175 F operating temperature range
• Includes (2) 3/4" x 1/2" reducer bushing; Natural to LP Gas conversion kit
• 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
• 5-3/8" high x 4-1/16" wide x 2-11/16" deep
