Johnson VG7251LS+3801B 3/4" Valve Assembly

No reviews Write a Review
$348.54
SKU:
VG7251LS-3801B
Availability:
Usually Ships in 2 to 3 Business Days
Hurry! Only left

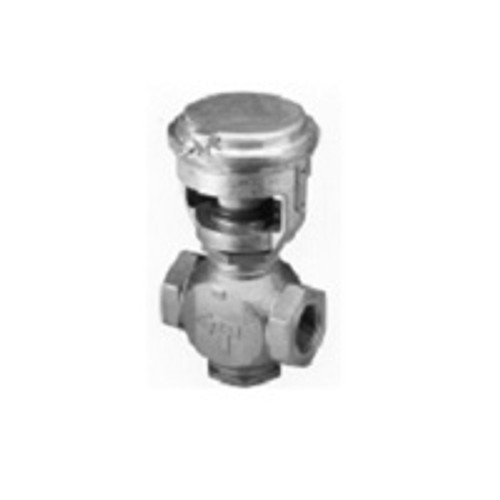

Johnson VG7251LS+3801B 3/4" Valve Assembly 7.3CV 3-6# Normally-Open

Johnson VG7251LS+3801B Features:

  • Stainless Steel Trim – For Hot/Chilled Water or 100 psig Saturated Steam
  • Rugged actuator die-cast enclosure fits VG7000 valves 1/2 through 1-1/4 in.
  • Effective diaphragm area: 8 sq in.
  • Controls – hot or chilled water, 100 psig saturated steam
  • Valve trim – stainless steel

• packing – spring-loaded PTFE and elastomer V-rings
• maximum supply air pressure: 25 psig (172 kPa)
• fluid temperature: 35 to 338°F (2 to 170°C)
• valve body static pressure rating: ANSI Class 250
