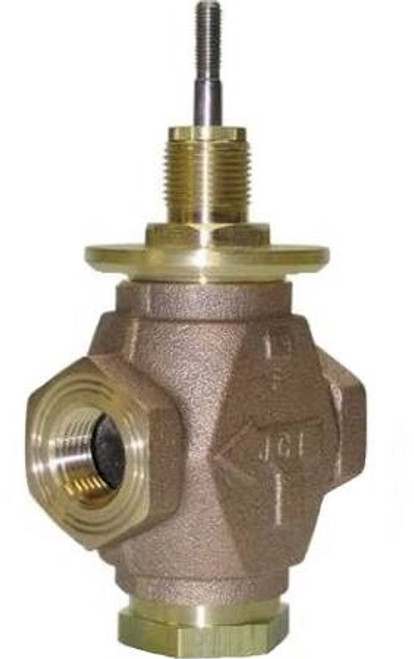

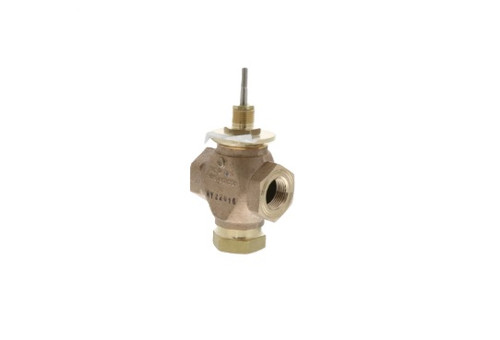

Johnson VG7842LT 3/4" NPT Valve Only 7.3CV Less Actuator 3-Way

Johnson VG7842LT Features:

• Compact; fits in tight spaces such as baseboard radiators and convectors
• Rugged actuators die-cast enclosure, enclosed spring
• Effective diaphragm area: 4 sq. In.
• Controls: hot or chilled water, 15 psig saturated steam
• Valve trim: brass
• Valve stem: stainless steel
• Maximum supply air pressure: 25 psig (172 kPa)
• Fluid temperature: 35°F to 248°F (2°C to 120°C)
• Valve body static pressure rating: ANSI Class 250
• Factory or field assembly
