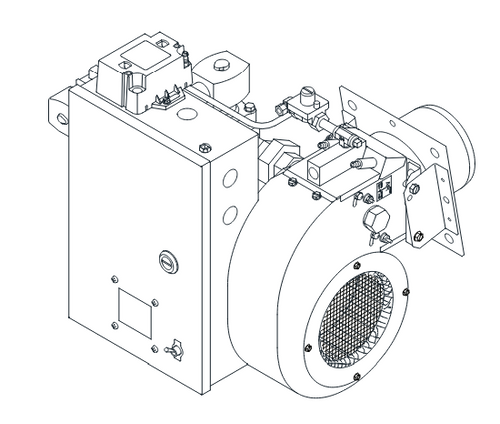

Midco J121A-3 Incinomite Gas Burner, Natural Gas

(BOM#6075310)

Model J121A-3 features intermittent spark ignition - 120V. Continuous monitoring by our solid state system verifies flame or the burner automatically locks out. Incinomites feature a spark ignited intermittent proven igniter (pilot) with 100% safety shut-off and up to 800 MBH input capacity.

Among other outstanding Incinomite standard features is the long luminous flame, the quiet permanently lubricated motor-driven high output blower, with an automatic self-cooling system that inhibits damage from heat back-up.

Permanently Lubricated Motors

Automatic Self Cooling System

Reversible Mounting Flange

Corrosion Resistant Powder Coated Housing

For the Burner to run on Propane gas, you will need to purchase the conversion kit to do so. Propane conversion kit is PN#2030801

• Type
  • Intermittent Spark Ignition - 120V
• Input Capacity MBH
  • 100 MBH Min.
  • 800 MHB Max.
• Gas Pressure Required
  • Natural : 5.5-14.0" W.C.
  • Propane: 8.0-14.0" W.C.
• Electric 120/1/60
  • 3 Amps. Max. Running
• Motor Horsepower
  • 1/40

• Incinomite Brochure
