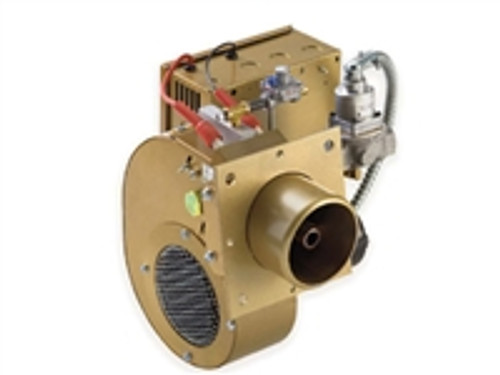

Midco J81A-3 Incinomite Gas Burner

(BOM#6075120 - Replaces Obsolete Style #6075110)

Model J81A-3 features intermittent spark ignition - 120V. Continuous monitoring by our solid state system verifies flame or the burner automatically locks out. Incinomites feature a spark ignited intermittent proven igniter (pilot) with 100% safety shut-off and up to 800 MBH input capacity.

Among other outstanding Incinomite standard features is the long luminous flame, the quiet permanently lubricated motor-driven high output blower, with an automatic self-cooling system that inhibits damage from heat back-up.

For the Burner to run on Propane gas, you will need to purchase the conversion kit to do so. Propane conversion kit is PN#2030701

Midco J81A-3 Features:

• Type
  • Intermittent Spark Ignition - 120V
• Input Capacity MBH
  • 100 MBH Min.
  • 800 MHB Max.
• Gas Pressure Required
  • Natural : 5.5-14.0" W.C.
  • Propane: 8.0-14.0" W.C.
• Electric 120/1/60
  • 3 Amps. Max. Running
• Motor Horsepower
  • 1/40

• Permanently Lubricated Motors

• Automatic Self Cooling System

• Reversible Mounting Flange

• Corrosion Resistant Powder Coated Housing
