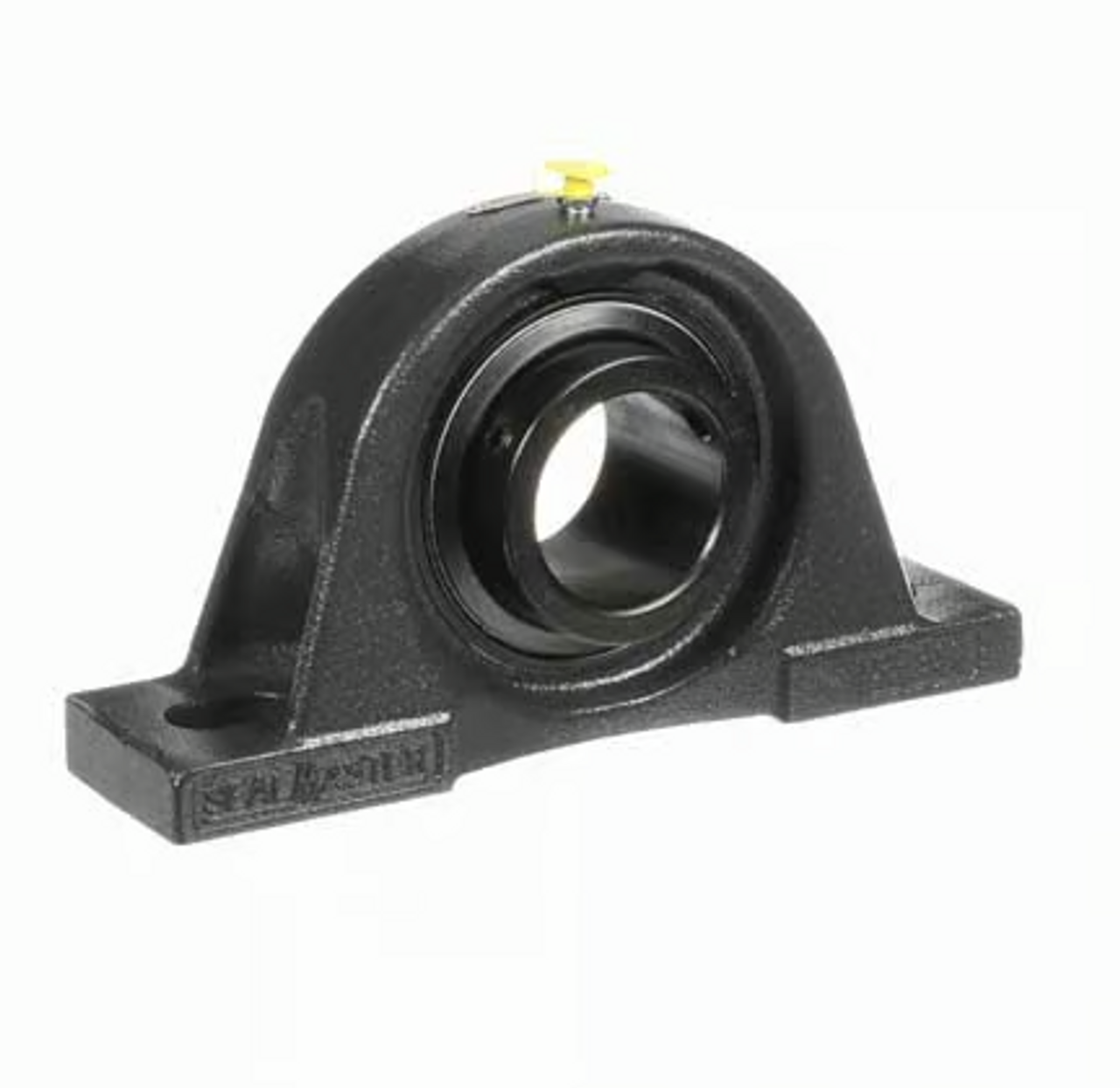

SealMaster SPM-27 CXU Medium Duty Pillow Block Bearing, 1-11/16" Shaft, Air Handling, Set Screw Ball Bearing

The SealMaster SPM-27 CXU Medium Duty Pillow Block Bearing is a medium duty set screw ball bearing.

SealMaster SPM-27 CXU Features:

• 1-11/16" Shaft
• CXU = Air Handling
• Ball Rolling Element
• Standard Felt Seal
• Solid Housing Base
• Metal Land Riding Retainer
• 200° Max Operating Temperature
• Cast Iron, two-bolt block
• Air Handling
• High Base

Industries

• Material handling
• Food processing
• Foundries
• Grain handling
• Agriculture

Applications

• Conveyors
• Bucket elevators
• Screens
• Mining machinery

Please see Technical Tab for Literature and Drawing

• A=2-3/8
• B=8-3/4
• C Min.=5-7/8
• C Max.=7-1/8
• D=2-3/8
• E=1-1/4
• F=3/4
• H=4-5/8
