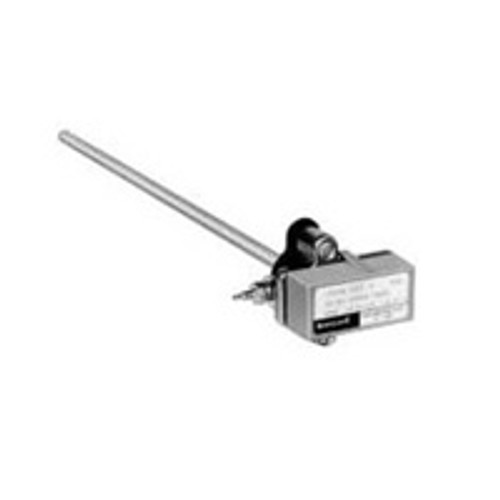

Honeywell LP914A1011 Pneumatic Temperature Sensor, -40 to 160F

One-pipe, direct-acting temperature sensor used with RP908/RP920 controllers to provide proportional control of pneumatic valve or damper actuators. Rod and tube insertion element for duct, well, or through-the-wall mounting.

Features:

• Corrosion resistant
• Direct Acting
• 1 Pipe
• -40 to 160 F sensor range
• 25 psi maximum safe operating range
• Wall mounted
• Rod and Tube sensor
• 265 F maximum operating temperature range
• Output: 3 psi to 15 psi; Supply: 18 psi pressure ratings
• Push-on barb for 5/32" and 1/4" O.D. tubing connections
• 2" high x 2-1/2" Wide body dimensions

See technical tab for literature on part # LP914A1011
