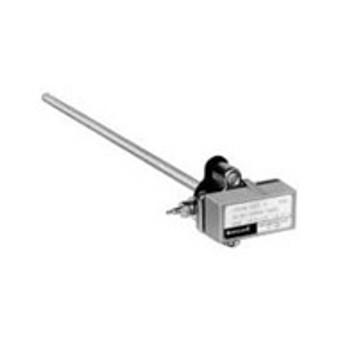

Honeywell LP915A1044 Averaging Pneumatic Temperature Sensor 0-200F

One-pipe, direct-acting temperature sensor used with RP908/RP920 controllers to provide proportional control of pneumatic valve or damper actuators. Averaging, liquid-filled element for duct mounting.

Features:

• Easily formed into variety of configurations to assure sensing of average temperatures
• Continuous temperature indication available by using receiver gauge
• Push-on barb for 5/32" and 1/4" O.D. tubing connection
• Duct mounting
• 25 psi maximum safe operating pressure
• Liquid-filled sensor
• 18-1/2 Foot long Insertion
• Direct Acting
• 1 Pipe
• 0 to 200 F sensor range
• 225 F maximum operating temperature range
• Output: 3 psi to 15 psi; Supply: 18 psi pressure rating
• 3" high x 1-7/8" wide x 1-1/2" deep

See technical tab for literature on part # LP915A1044
