Solenoid Control Valves

Midco 840209 Solenoid Valve, 1-1/2", 220V For use on the following burners: MPG 1.5 MPG 2.5 Unipower-G Technical Literature: Midco Burner Product Line

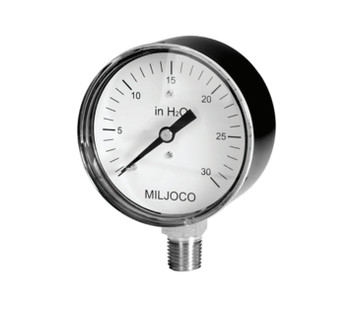

Miljoco LP2507210 Diaphragm Gauge 2.5" The Miljoco low pressure diaphragm gauge is best used in applications ranging up to 10 psi. This advanced-design gauge provides the customer with precision that exceeds the competition.  Features 0-15 psi Dail...

Asco K3A532V 3/8" Solenoid valve 120V 10 PSI Gas Application Features: 2-way normally closed operation Die-cast aluminum bodies For positive shutoff on pilot or main gas lines of commercial and industrial gas burners Valves provided with 1/8" NPT...

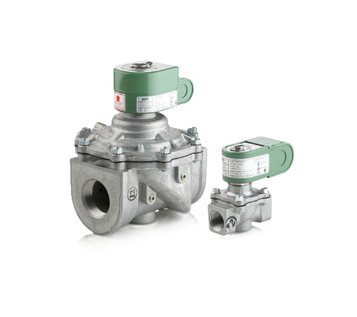

Asco S261SH02N3KK4 2-1/2" Solenoid Safety Gas Valve, 120Vac, Safety Gas Valve 25PSID Features: 2-way Normally Closed Operation Die-cast Aluminum Bodies 305SS Core Tube 430F SS Core and Plugnut 3" Orifice Size Technical Literature: Asco Technical...

Asco K3A462V 1" Solenoid Valve, 120V Asco K3A462V Specifications: 1/2 PSI Gas Application 120V/60Hz Max Fluid Temp: 140 Deg F 1" NPT Port 1-3/8" Orifice Cv= 14.6 Wattage: 15.4 Features: 2-way Normally Closed Operation Die-cast Aluminum Bodies 305SS...

Asco EF8215B050 1" 2-Way Solenoid Valve NC 0-Min Explosion Proof CV 21 Air Service, 120Vac Features: Lightweight, low-cost valves for air service Ideal for low pressure applications Provides high flow, Cv up to 138 (Kv 118) Air and vacuum service Body -...

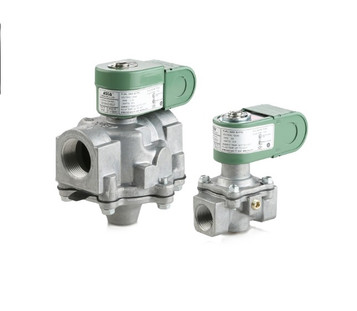

Asco S262SH02N3JK4 2" Solenoid Gas Vent Valve, 120Vac Asco S262SH02N3JK4 Specifications: 2" NPT Port 120V/60Hz 3" Orifice Normally Open Gas Capacity: 4,529,000 Btu/hr Max Fluid Temp: 140 Deg F Wattage: 28.2 Cv= 84 Features: 2-way Normally Open...

Asco S262SH02N3EG5 3/4" Gas Vent Valve, 120Vac Asco S262SH02N3EG5 Specifications: 3/4" NPT Port 120V/60Hz 3/4" Orifice Normally Open Cv= 4.7 Gas Capacity: 252,000 Btu/hr Wattage: 10.5 Features: 2-way Normally Open Operation Die-cast Aluminum Bodies...

Asco K3A682V 1-1/2" Solenoid valve 120V Asco K3A682V Specifications: 5 PSI Gas Application 120V/60Hz Max Fluid Temp: 140 Deg F 1-1/2" NPT Port 1-5/8" Orifice Cv= 35 Wattage: 20 Features: 2-way Normally Closed Operation Die-cast Aluminum Bodies...

Honeywell V4295A1031 Solenoid Gas Valve, 1", Normally Closed The Honeywell V4295A1031 is a normally closed gas solenoid valve that is suitable for furnaces, ovens, atmospheric burners, commercial water heaters, roof-top make-up air units, power burners,...

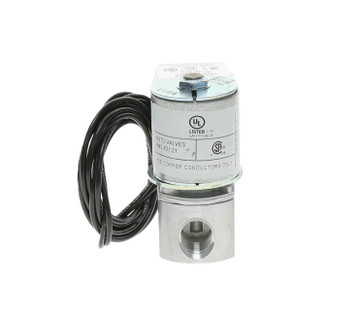

Honeywell V4046C1054 3/8" Pilot Gas Solenoid Valve 120VAC Pilot gas solenoid valves provide on-off control of natural, LP, and manufactured gases to pilot burners in industrial and commercial applications. Can be used while in any position, directly in...

Honeywell V4046C1047 1/4" Pilot Gas Solenoid Valve Pilot gas solenoid valves provide on-off control of natural, LP, and manufactured gases to pilot burners in industrial and commercial applications. Can be used while in any position, directly in pipe...

Johnson V11PNA-105 1/8" EP Valve 24VDC 3-Way Johnson V11PNA-105 1/8" EP Valve 24V is a three-way solenoid valve, and is designed for use as operating devices. Johnson V11PNA-105 Features: Alternating Current Models: Minimum 32F to Maximum 140F...

Johnson V11HCA-100 1/8" EP Valve 208V 3-Way Johnson V11HCA-100 1/8" EP Valve 208V is a three-way solenoid valve, and is designed for use as operating devices. Johnson V11HCA-100 Features:/h2> Alternating Current Models: Minimum 32F to Maximum...

Johnson V11HBA-100 1/8" EP Valve 240V Johnson V11HBA-100 1/8" EP Valve 240V is a three-way solenoid valve, and is designed for use as operating devices. Johnson V11HBA-100 Features: Alternating Current Models: Minimum 32F to Maximum 140F Direct...

Johnson V11HAA-100 EP Valve 120V, 1/8" Johnson V11HAA-100 1/8" EP Valve 120V is a three-way solenoid valve, and is designed for use as operating devices. Johnson V11HAA-100 Features: Alternating Current Models: Minimum 32F to Maximum 140F Direct...

Asco S262SH02N3GJ7 1-1/4" Gas Vent Valve, 120Vac Asco S262SH02N3GJ7 Specifications: 1-1/4" NPT Port 120V/60Hz 1-5/8" Orifice Gas Capacity: 1,941,100 Btu/hr Cv= 34 Wattage: 15.4 Max Fluid Temp: 140 Deg F Features: 2-way Normally Open Operation...

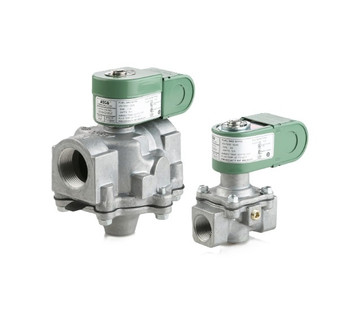

Asco S262SH02N3FJ5 1" Gas Vent Valve, 120Vac Asco S262SH02N3FJ5 Specifications: 1" NPT Port 120V/60Hz 1-5/8" Orifice Normally Closed Gas Capacity: 1,068,000 Btu/hr Cv= 19.8 Wattage: 15.4 Features: 2-way Normally Open Operation Die-cast Aluminum...

Asco S262SG02N3GJ7 1-1/4" Solenoid CS5 120VAC Normally-Open Vent Valve Features • 2-way normally open operation • Die-cast aluminum bodies • Zero differential piloted diaphragm • Valves...

Asco S262SG02N3FJ5 1" Solenoid CS5 120VAC Normally-Open Vent Valve Features • 2-way normally open operation • Die-cast aluminum bodies • Zero differential piloted diaphragm • Valves provided...
